128x64 display for Pc View larger

128x64 display for Pc

This circuit allows us to connect a 128x64 display with the PC parallel port.

More details

Data sheet

Design Schema
View Lcd
Supply voltage 5 Volts
Electronic Digital
Photo Yes

More info

For its use we must use specific software to handle displays. This software allows us to “draw” on the display what we want to monitor from our computer.

There are many programs on the internet that support this interface.

The wiring diagram.

Display 128x64

The circuit board.

Circuito display 18x64

Pictures of the circuit assembled in a sandwich way with the display.

See the display on opposite page.

Foto trasera display 128x64

Sandwich assembling with the display.

Foto display 128x64

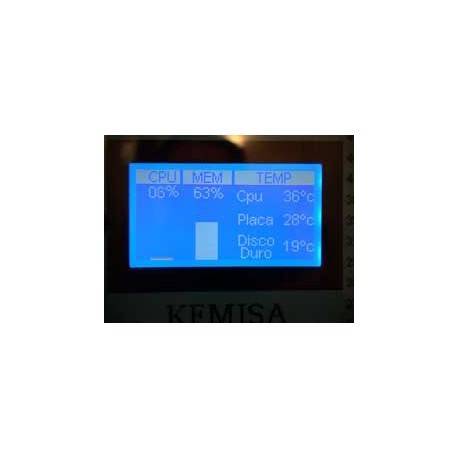

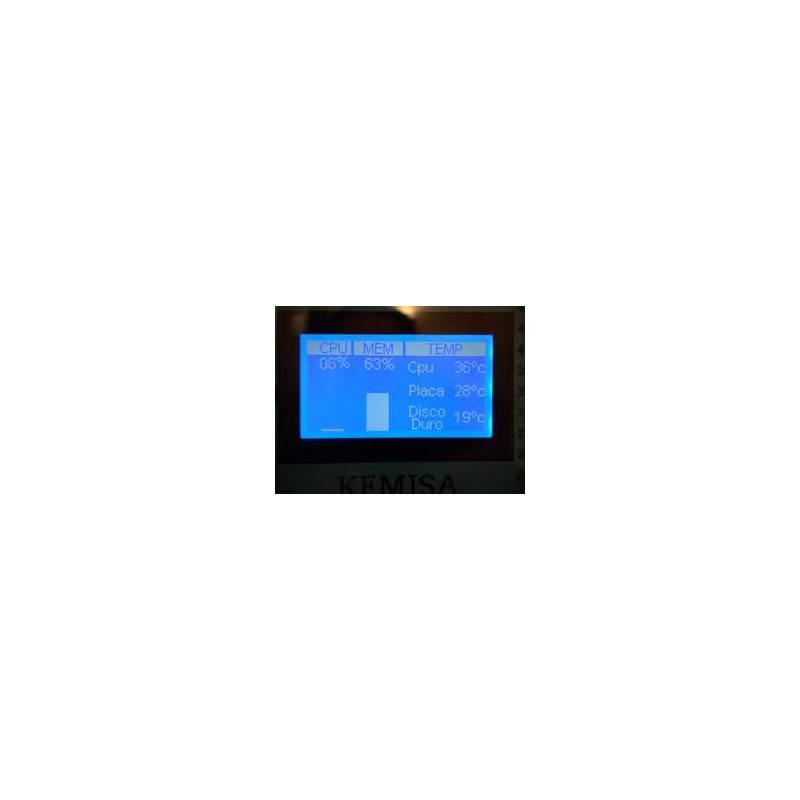

A picture of the display operating.

Foto display 128x64 funcionando

The scheme and the circuit board should be in the same folder and they should have the same name, you should only change the extension to .sch for the scheme and to .brd for the circuit board, this way both of them will be recognized and associated by Eagle.

The file to download is compressed, to extract it, you should enter a password: www.kemisa.es

If you don´t know how to make a printed circuit boards click here.

Download

128x64 display for Pc

Download (78.19k)
